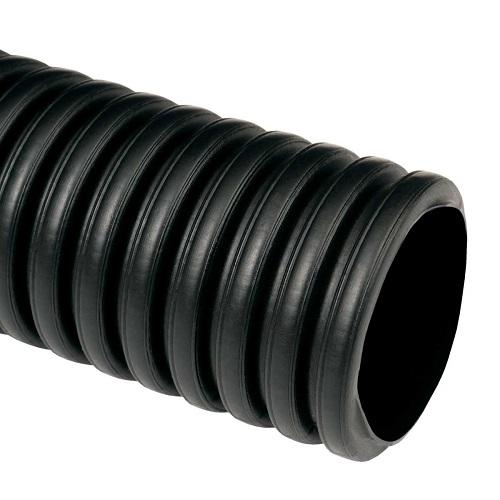

Doublecoat corrugated pipes KOPOS Kopoflex 50 mm KF 09050 FA


22,00 грн. VAT included per 1 meter

101,00 грн. VAT included for 3 item(s)

Halogen-free flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector – see catalogue PIPE PROTECTORS.

manufacturer

KOPOS

Outside diameter50 mm
Inner diameter41 mm
Weight5.5 kg/m
MaterialHDPE
Minimum bending radius350 mm
Length50 m
Mechanical resistance450 N/20 cm
Fire reaction classА1
Temperature resistancepackage: -45 – +60 °C; assembly: -5 – +60 °C
Producing countryCzech
