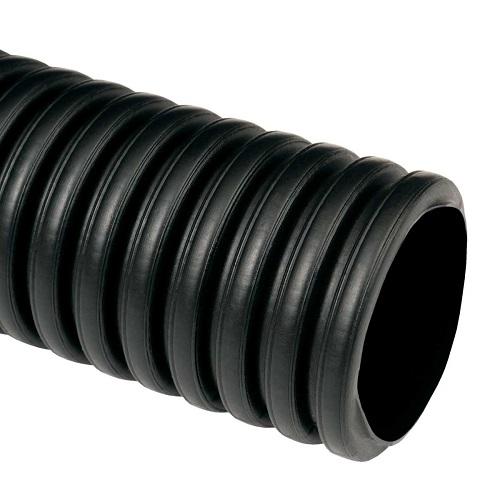

Doublecoat corrugated pipes KOPOS Kopoflex 160 mm KF 09160 UVFA, UV-stabilized
91,35 грн. VAT included per 1 meter
Halogen-free UV stable flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector – see catalogue PIPE PROTECTORS.
|Outside diameter||160 mm|
|Inner diameter||136 mm|
|Minimum bending radius||500 mm|
|Fire reaction class||А1|
|Temperature resistance||package: -45 – +60 °C; assembly: -5 – +60 °C|
