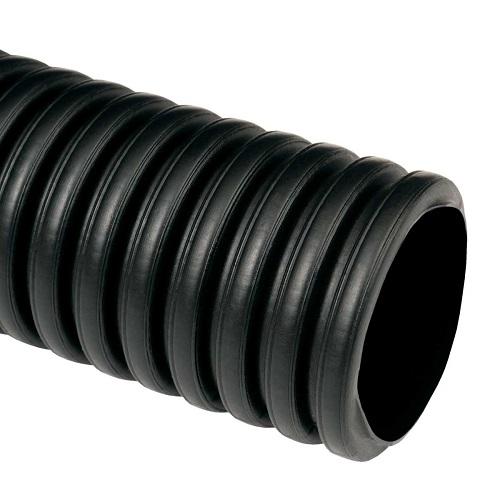

Doublecoat corrugated pipes KOPOS Kopoflex 75 mm KF 09075 UVFA, UV-stabilized


43,00 грн. VAT included per 1 meter

139,00 грн. VAT included for 3 item(s)

Halogen-free UV stable flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector – see catalogue PIPE PROTECTORS.

manufacturer

KOPOS

Outside diameter75 mm
Inner diameter61 mm
Length50 m
Minimum bending radius350 mm
MaterialHDPE/ LDPE
Mechanical resistance>450N/5см
Fire reaction classА1
Temperature resistancepackage: -45 – +60 °C; assembly: -5 – +60 °C
Producing countryCzech
