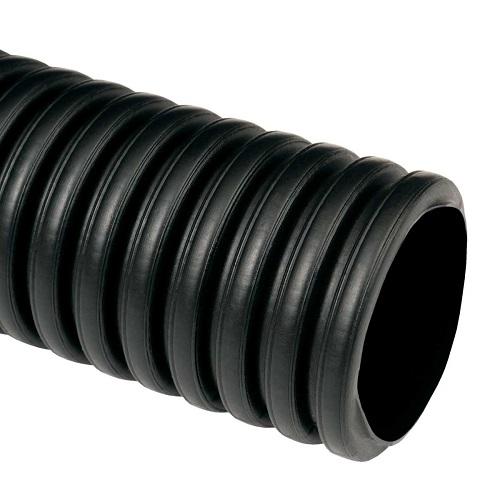

Doublecoat corrugated pipes KOPOS Kopoflex 160 mm KF 09160 UVFA, UV-stabilized


141,00 грн. VAT included per 1 meter

454,00 грн. VAT included for 3 item(s)

Halogen-free UV stable flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector – see catalogue PIPE PROTECTORS.

manufacturer

KOPOS

Outside diameter160 mm
Inner diameter136 mm
Length50 m
Minimum bending radius500 mm
MaterialHDPE/ LDPE
Mechanical resistance>450N/5см
Fire reaction classА1
Temperature resistancepackage: -45 – +60 °C; assembly: -5 – +60 °C
Producing countryCzech
